Rangehood
DUcting & Accessories

We can install your rangehood ducting and accessories in the Auckland & Waikato areas. All of our products and accessories can be purchased by contacting us to place an order

At Rangehood Solutions, we know ducting. We have all the correct ducting products, materials and options on hand to suit your type of rangehood & installation.

Whether it be a silent off board model rangehood or a standard onboard type we have the right ducting solution for you.

Semi Rigid Ducting available in 125mm, 150mm, 200mm, 250mm

Flexi Ducting 6m available in 125mm, 150mm and 200mm

High Spec Flexi Ducting, available in 150mm and 200mm

Soffit Grill available in 125mm, 150mm and 200mm

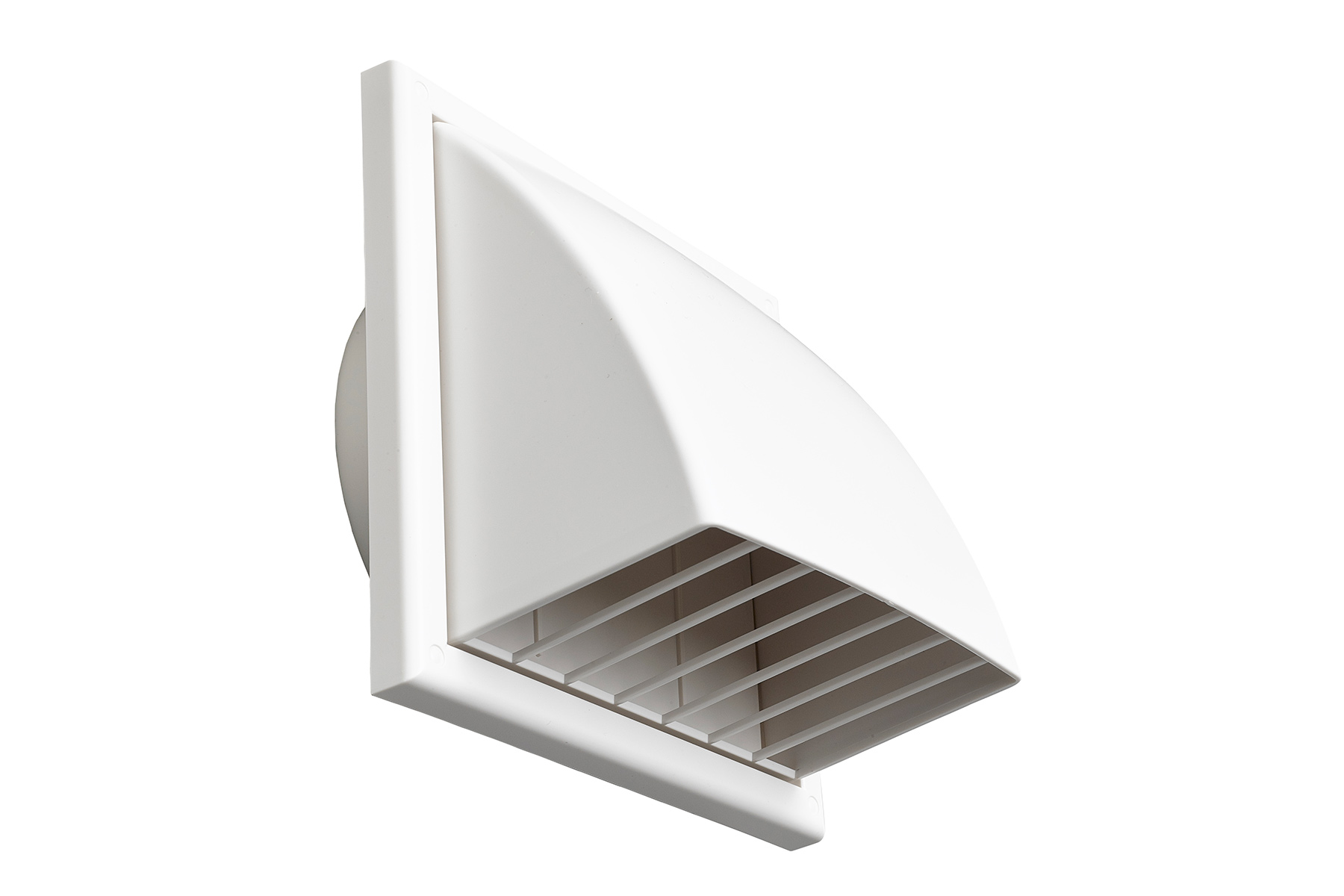

Wall Vent Weatherproof Cowl – available in 125mm and 150mm

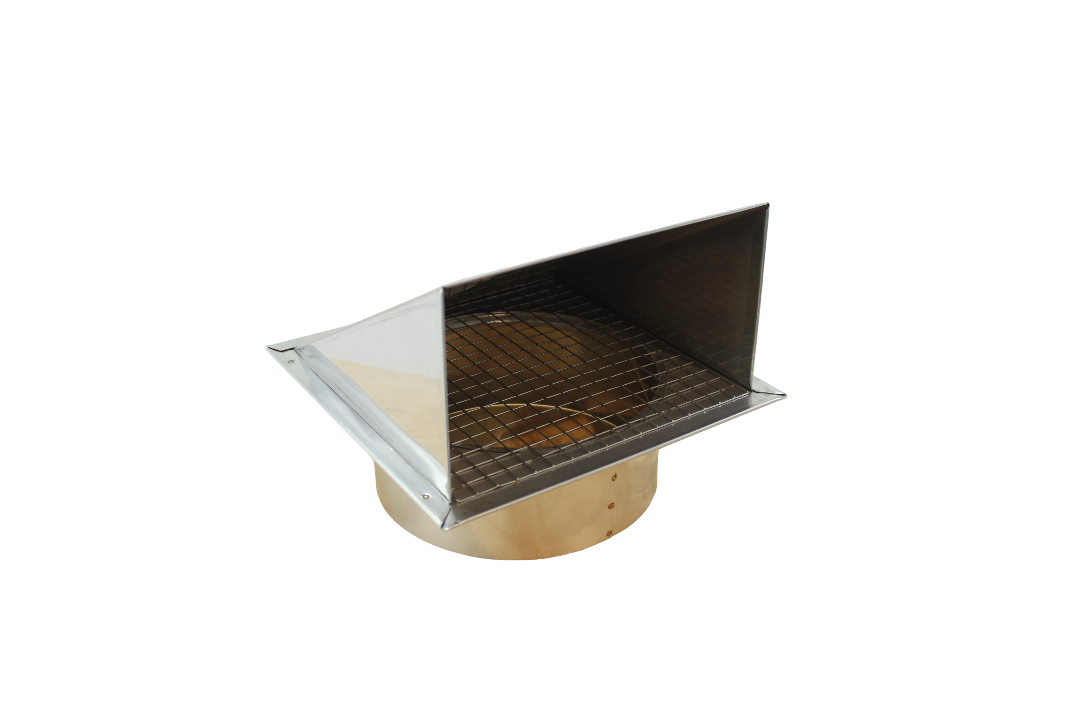

Wall Vent Stainless – 200mm with Mesh

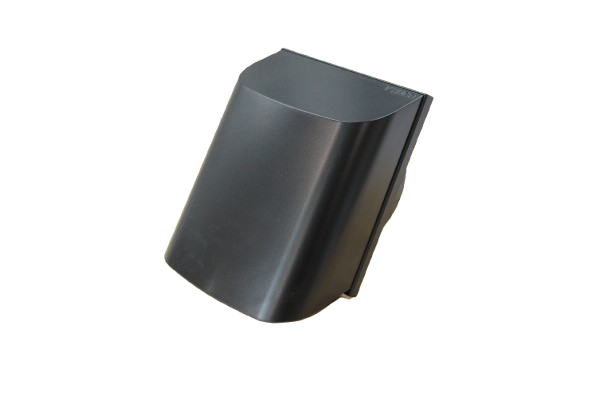

Vynco Wall Vent – 150mm in Black or White

Steel Kleen Stainless Cleaner

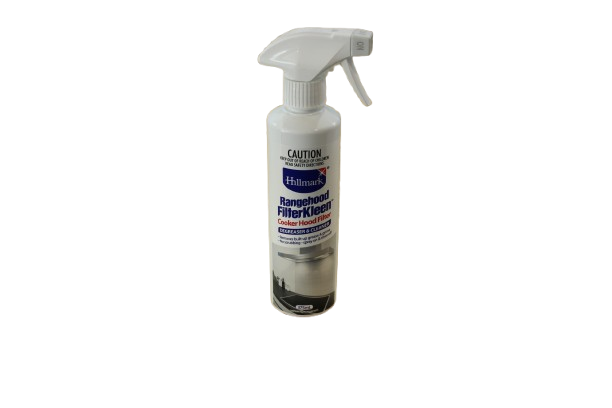

Steel Kleen Filter Cleaner

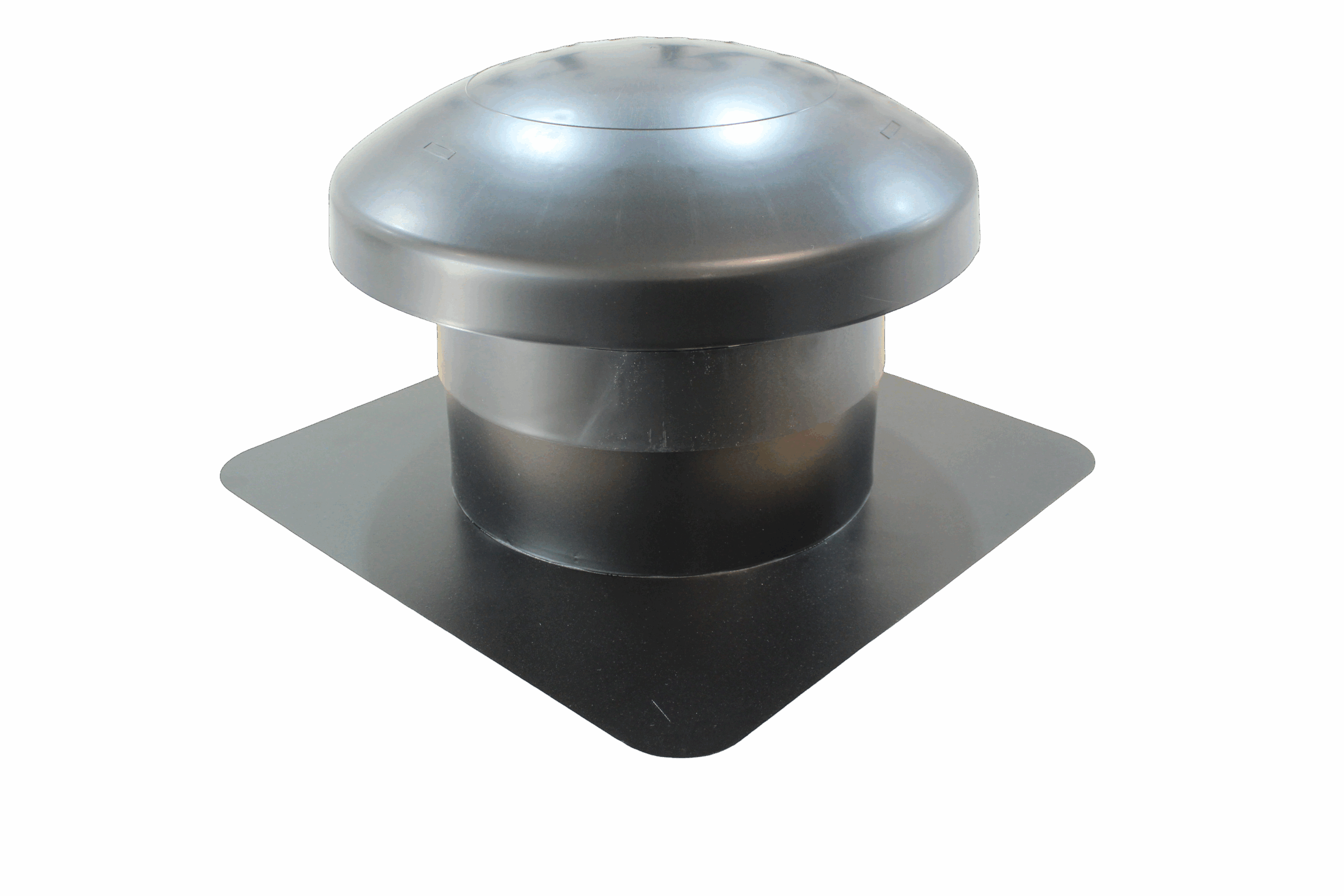

Roof Flashing System – available in 150mm and 200mm options

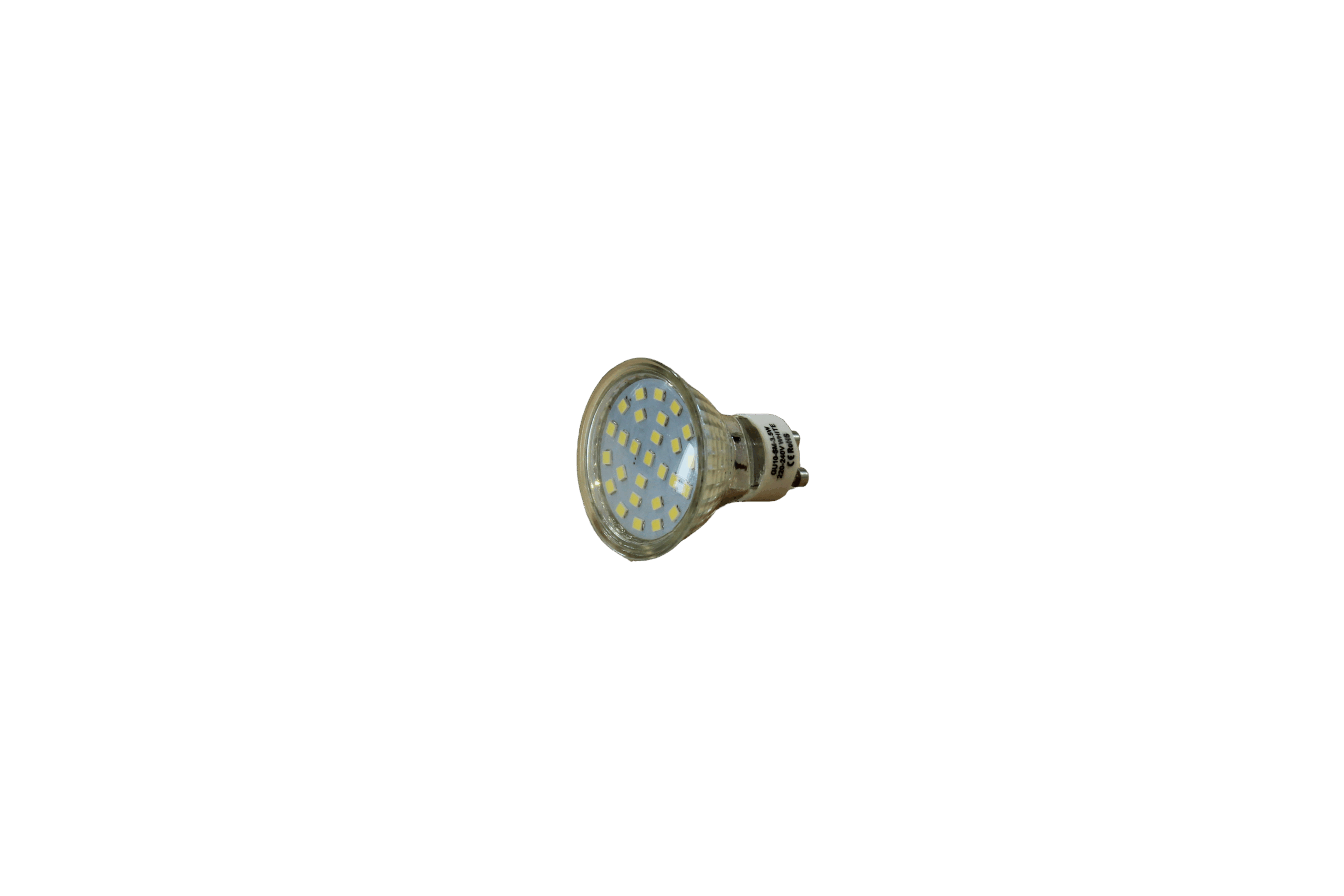

GU10 3.5w Rangehood Lights

Ceiling Diffuser 150mm or 200mm

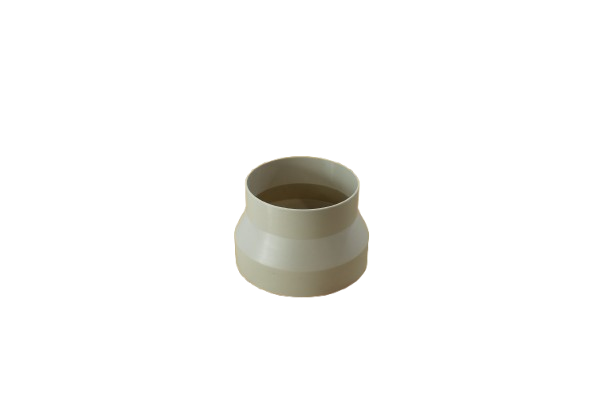

Reduce Expander – available in 125/150mm and 150/200mm

Flat Channel Ducting 220mm x 90mm

Flat Channel Straight Connector

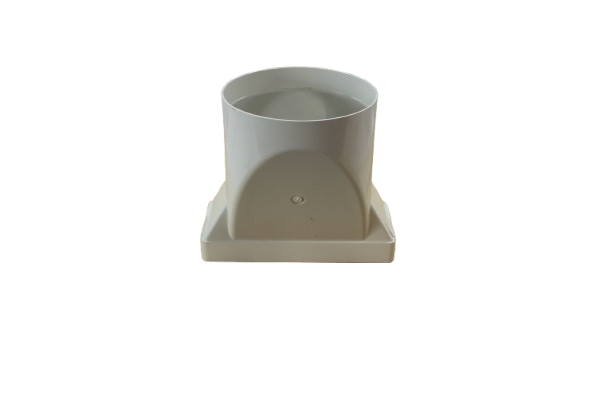

Flat Channel Inline Adaptor

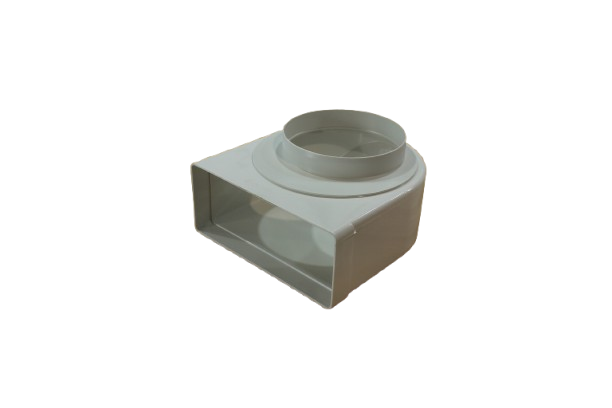

Flat Channel Elbow Adaptor

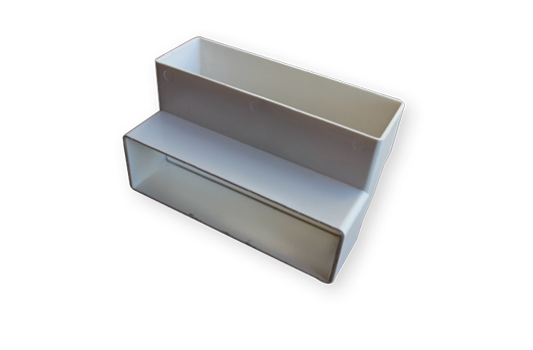

Flat Channel 90 Degree Vertical Bend

Flat Channel 45 Degree Vertical Bend

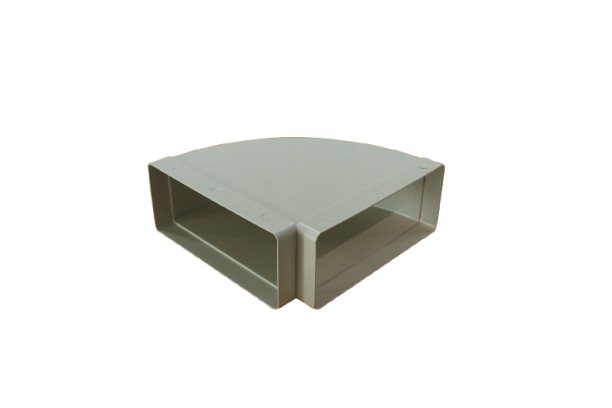

Flat Channel 90 Degree Horizontal Bend

When bends or offsets are unavoidable in the ducting run we will use 150/125mm “semi rigid” ducting. This is an aluminium smooth internal bore product which allows high unrestricted airflow around any radius of bend/offset. We can also offer a rectangle PVC boxed ducting for in wall frame or limited space installations. This option is also available in the equivalent of 150/125mm sizes with a variety of rectangle to round adaption fittings, along with horizontal and vertical offset options.

Some advantages of using the high spec ducting products mentioned above over the sub-standard flexible ducting used by some installers are:

  • Semi Rigid Ducting

    Ideal ducting to install with powerful onboard rangehoods, with ducting distances of 0-6m

  • Flexi Ducting – when installed with Onboard, Non-Silent Rangehoods

    If installed with an onboard model, only to be used on very short ducting routes 0-3m maximum & when the installation of semi rigid ducting is unachievable

  • Flexi Ducting – When installed with Offboard Silent Rangehoods

    If installed with an offboard model, plan for a 3-6m ducting route, the longer the ducting distance the quieter the rangehood will perform at kitchen level

  • High Spec Flexi Ducting

    Premium Flexi Ducting, to be installed as noted above with either onboard or offboard models, this ducting is flame proof, rodent proof & highly durable

  • Galvanised & Spiral Duct

    Ideal for extra-long onboard ducting routes, excellent airflow & highly durable

  • Flat Channel Ducting

    Ideal for installation in narrow spaces, in ceilings, toe kicks & in wall frames, comes with a variety of fittings

  • Naber Channel Ducting

    Premium Flat Channel Ducting, with a smooth internal bore & rounded corner edges for optimum airflow, perfect to install with downdraughts and again all those tight narrow spaces

  • Roof Flashing Systems

    We have a variety of Roof Flashing Systems to suit your roof pitch & profile, please enquire
