Rangehood
DUcting & Accessories

We can install your rangehood ducting and accessories in the Auckland & Waikato areas. All of our products and accessories can be purchased by contacting us to place an order

At Rangehood Solutions, we know ducting. We have all the correct ducting products, materials and options on hand to suit your type of rangehood & installation.

Whether it be a silent off board model rangehood or a standard onboard type we have the right ducting solution for you.

Flat Channel 45 Degree Horizontal Bend

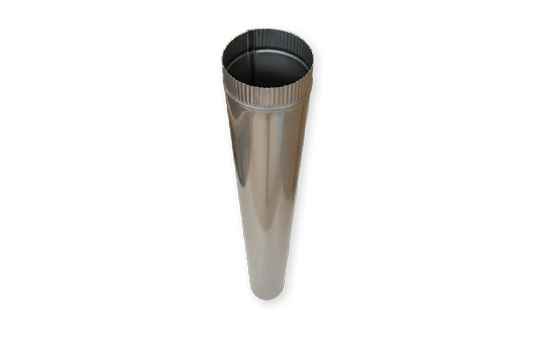

Solid Galvanised Ducting available in 150mm and 200mm

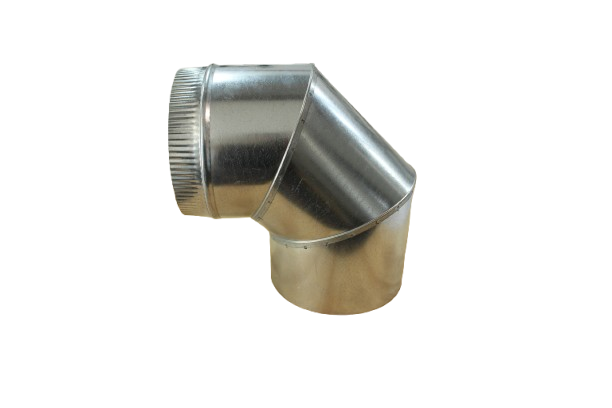

Galvanised 90 Degree Fixed Bend available in 150mm and 200mm

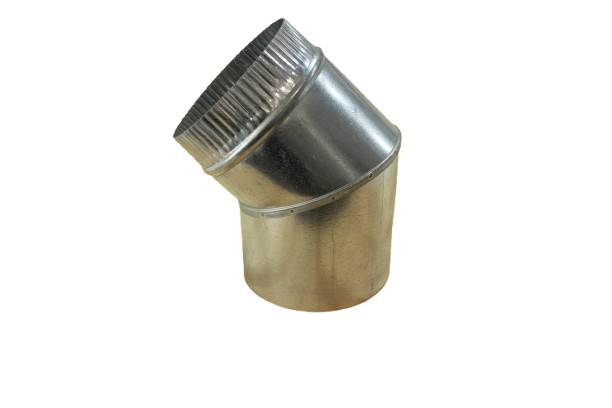

Galvanised 45 Degree Fixed Bend

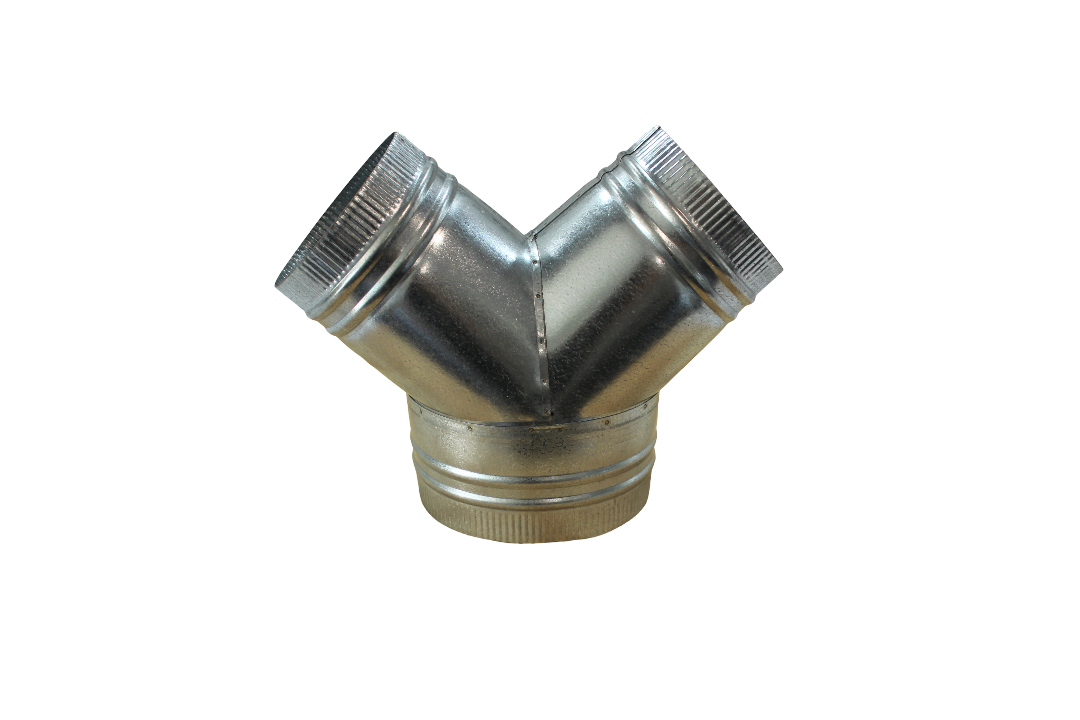

Galvanised Y Junction 150/150/200mm

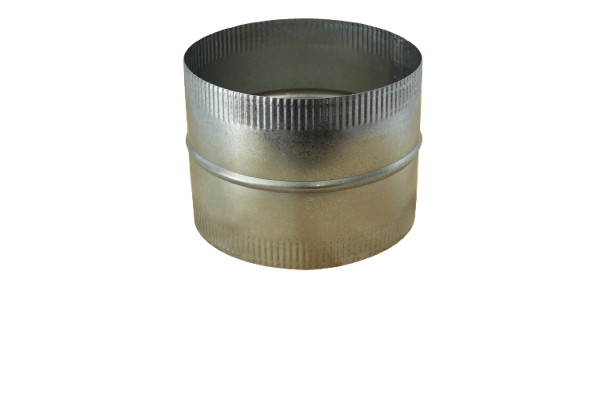

Galvanised Straight Ducting Connector – 150mm and 200mm

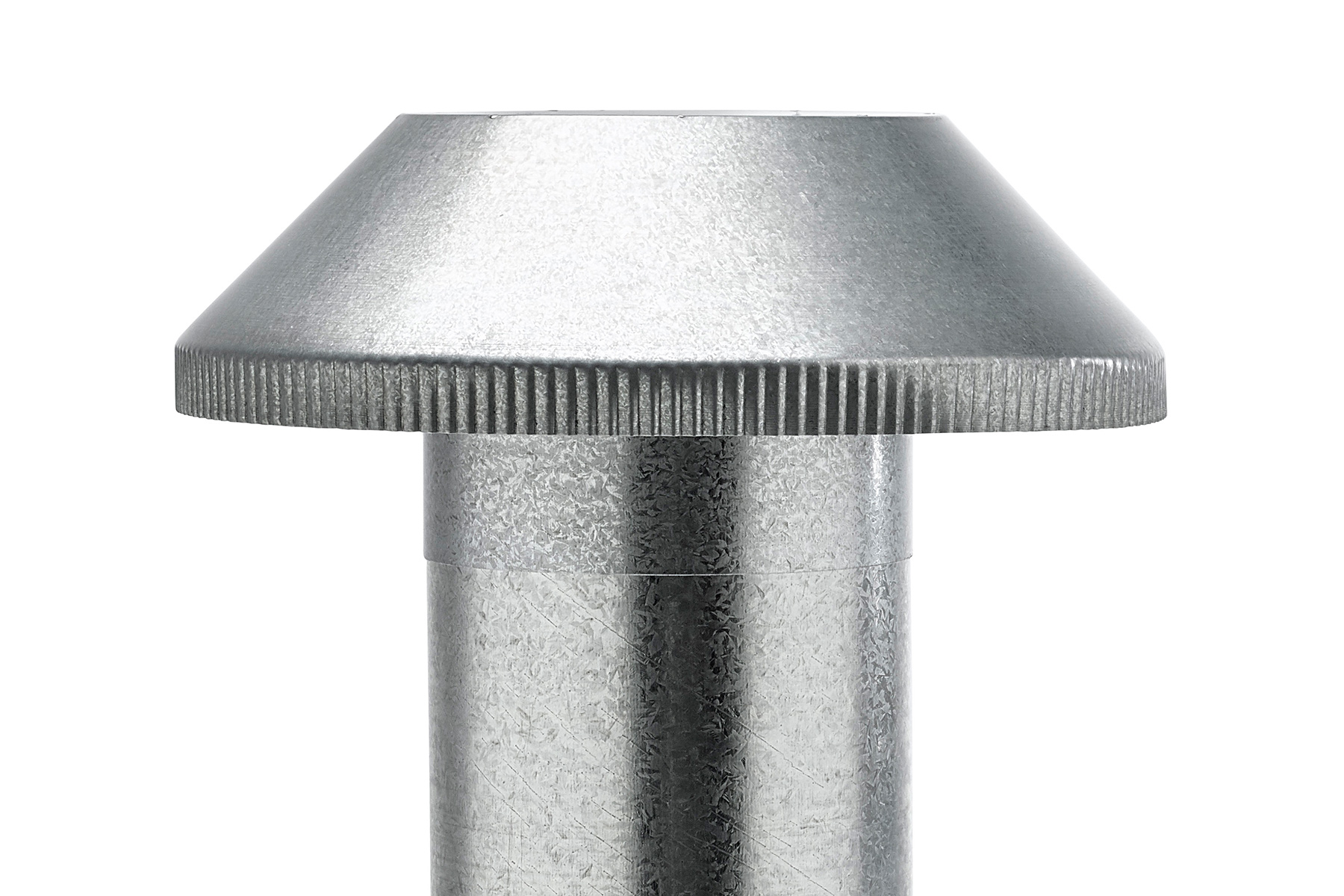

Galvanised Low Line Roof Cowl available in 150mm and 200mm

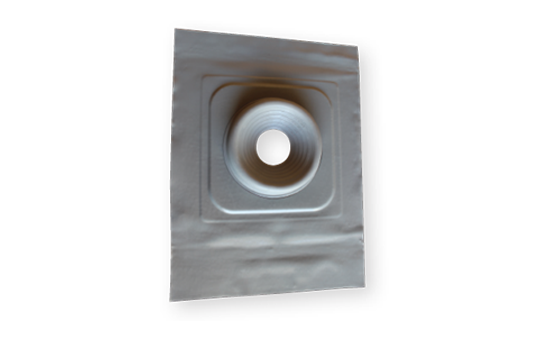

Masonry Tile Flash

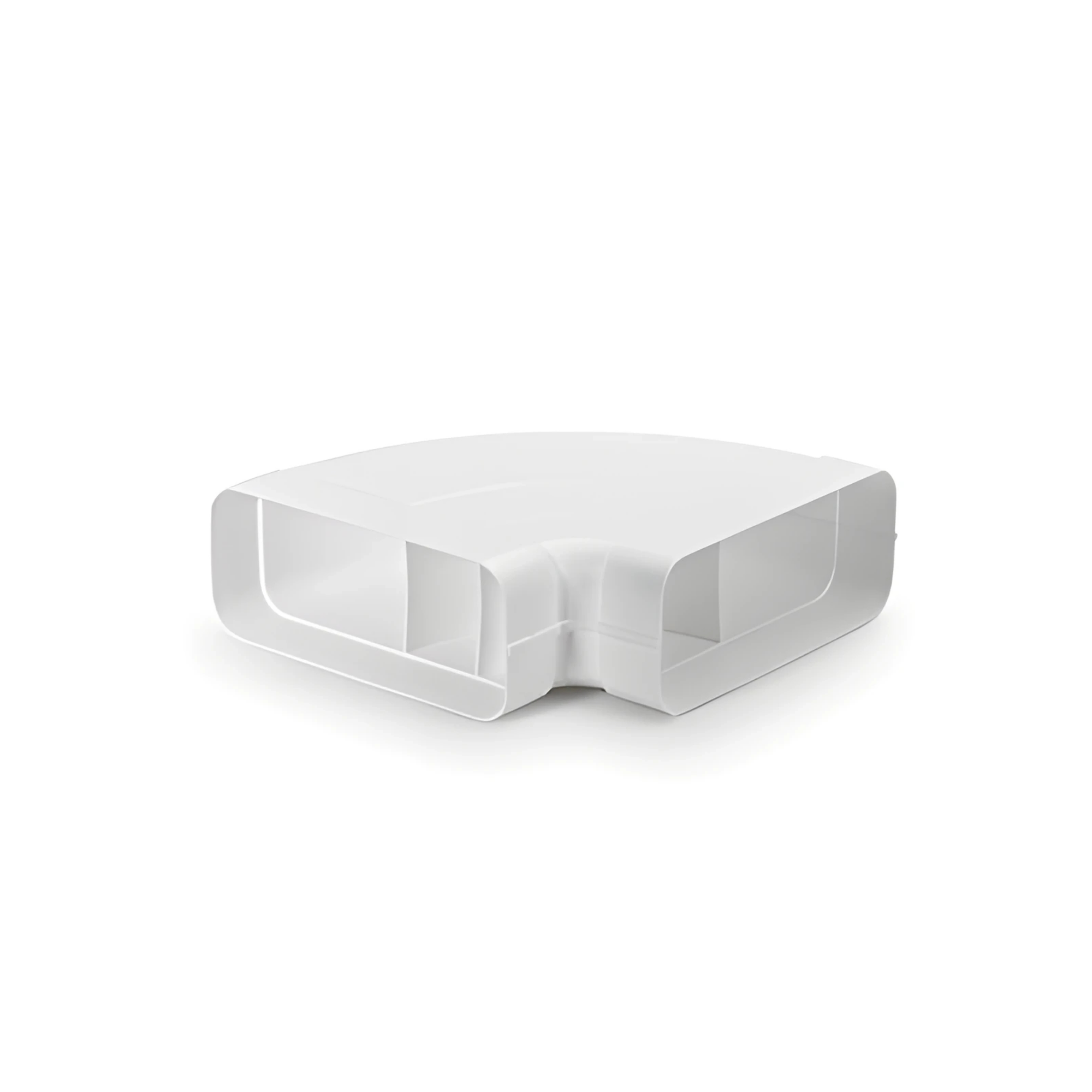

Naber 90 Degree Horizontal Bend

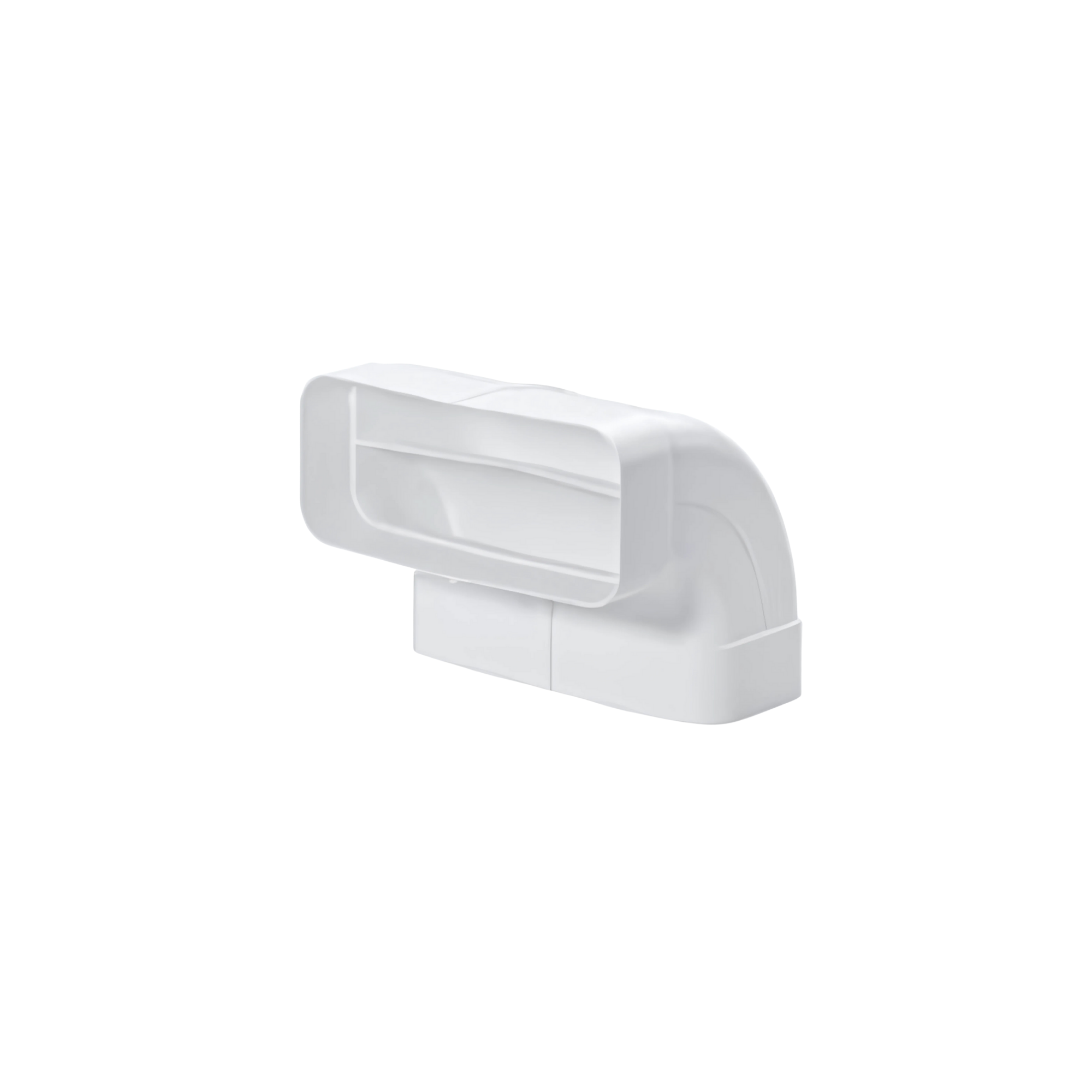

Naber 90 Degree Vertical Bend

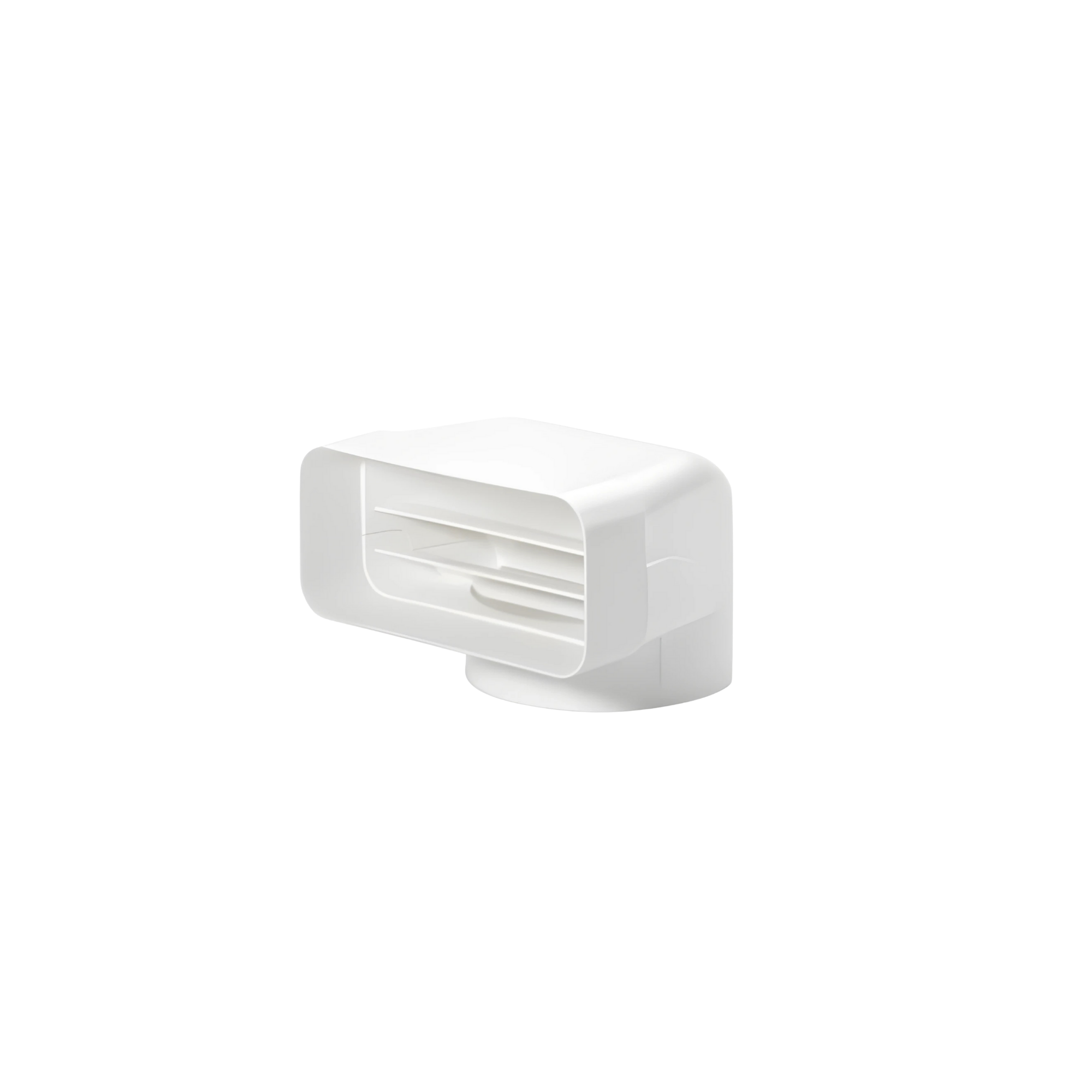

Naber Elbow Adaptor

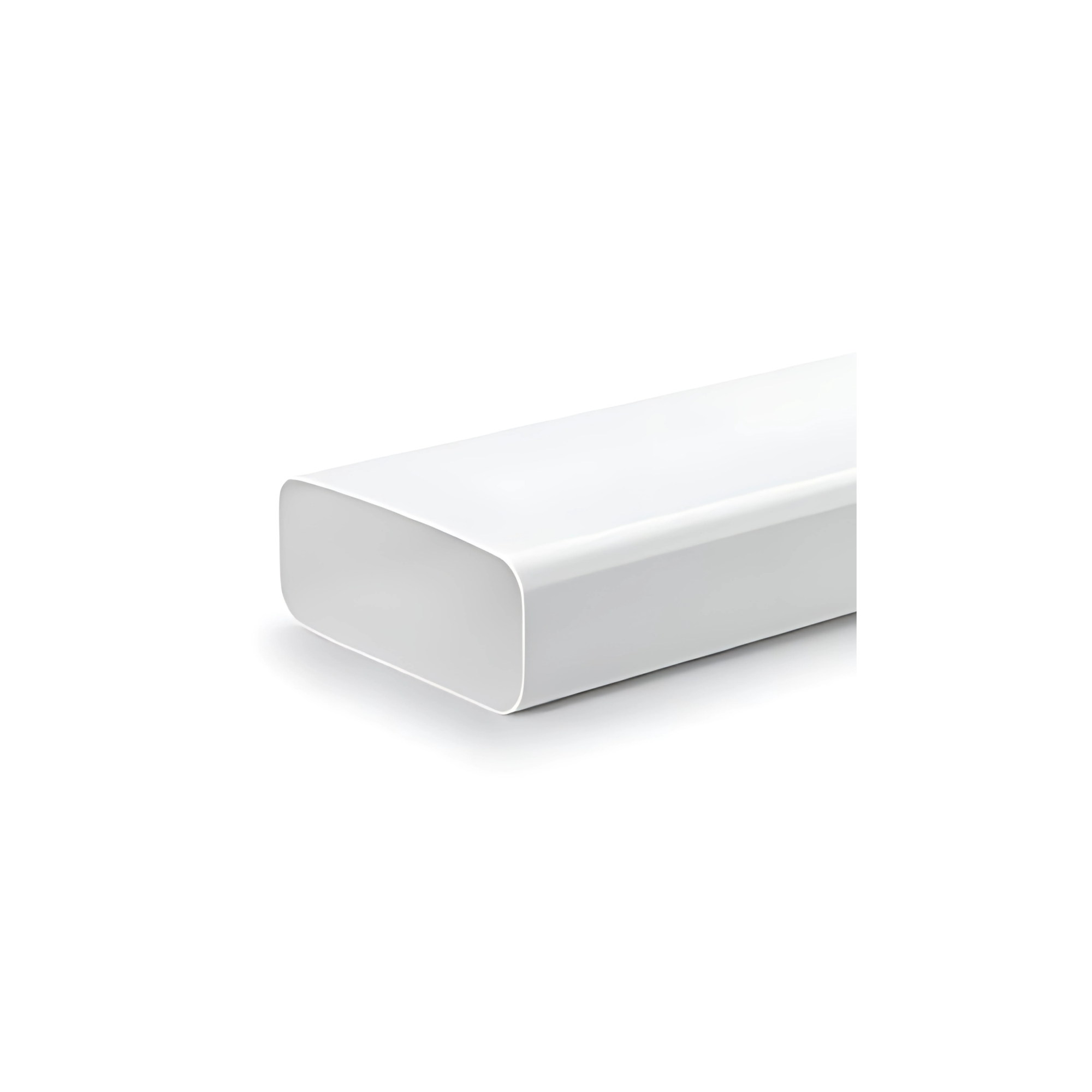

Naber Flat Channel Ducting

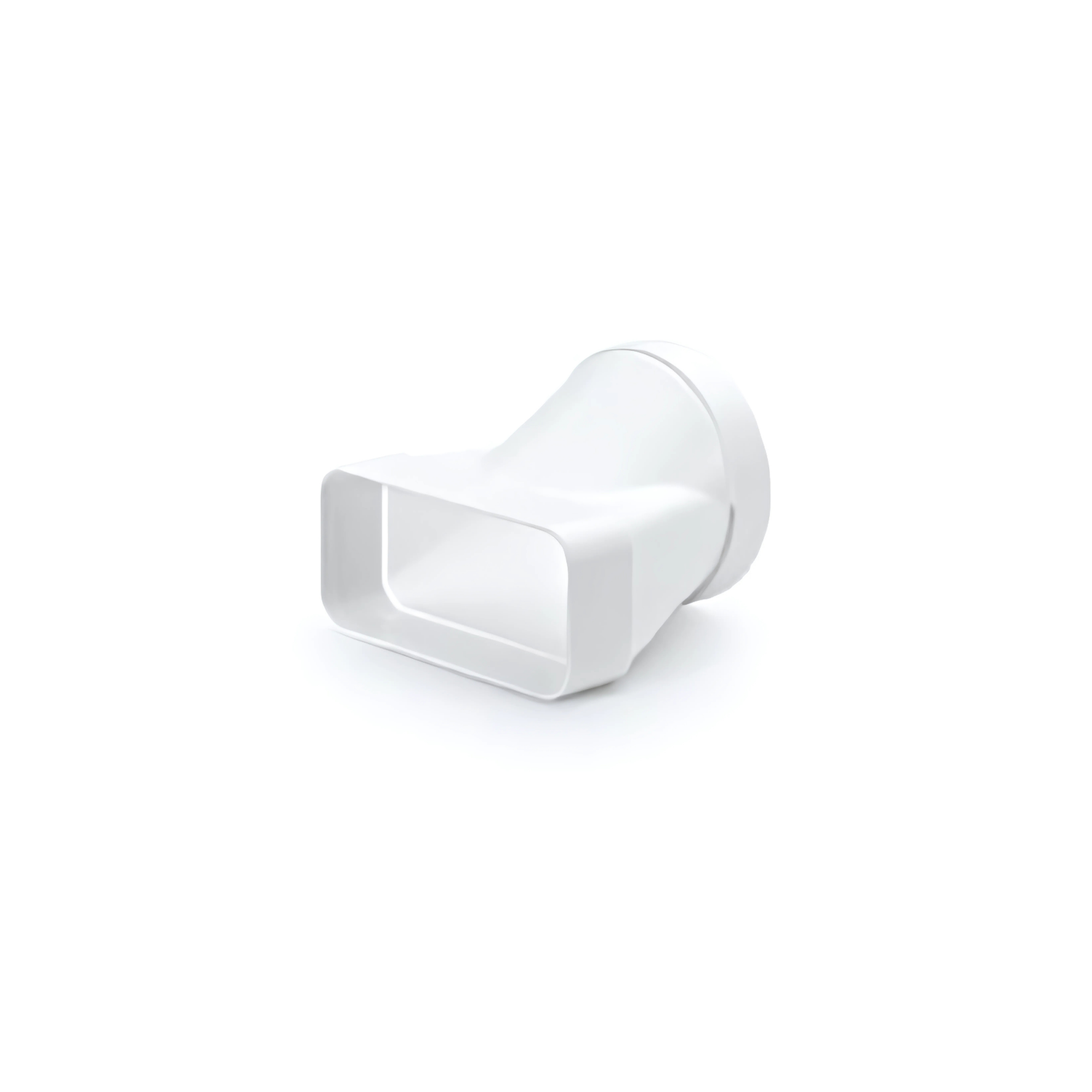

Naber Inline Adaptor

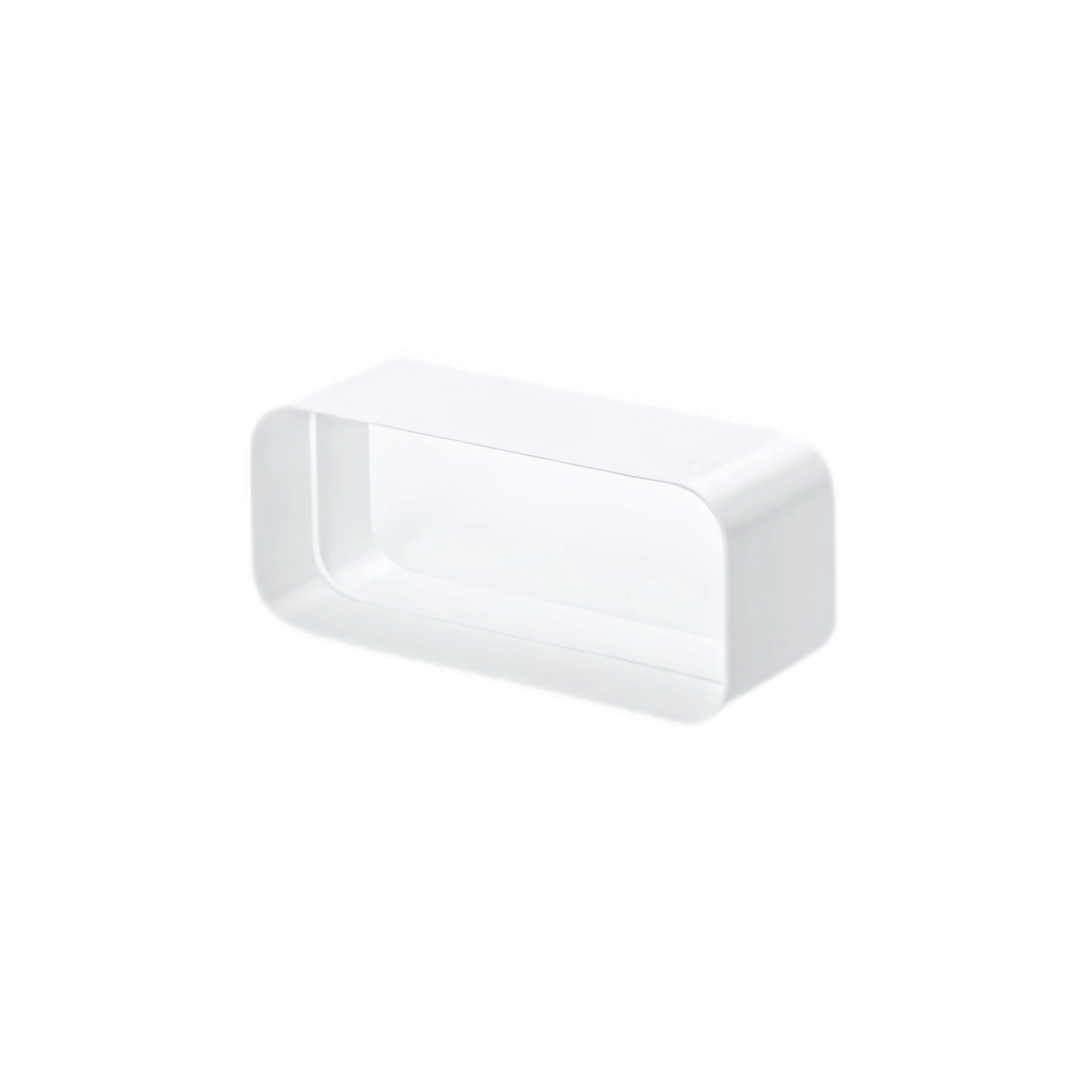

Naber Straight Duct Connector

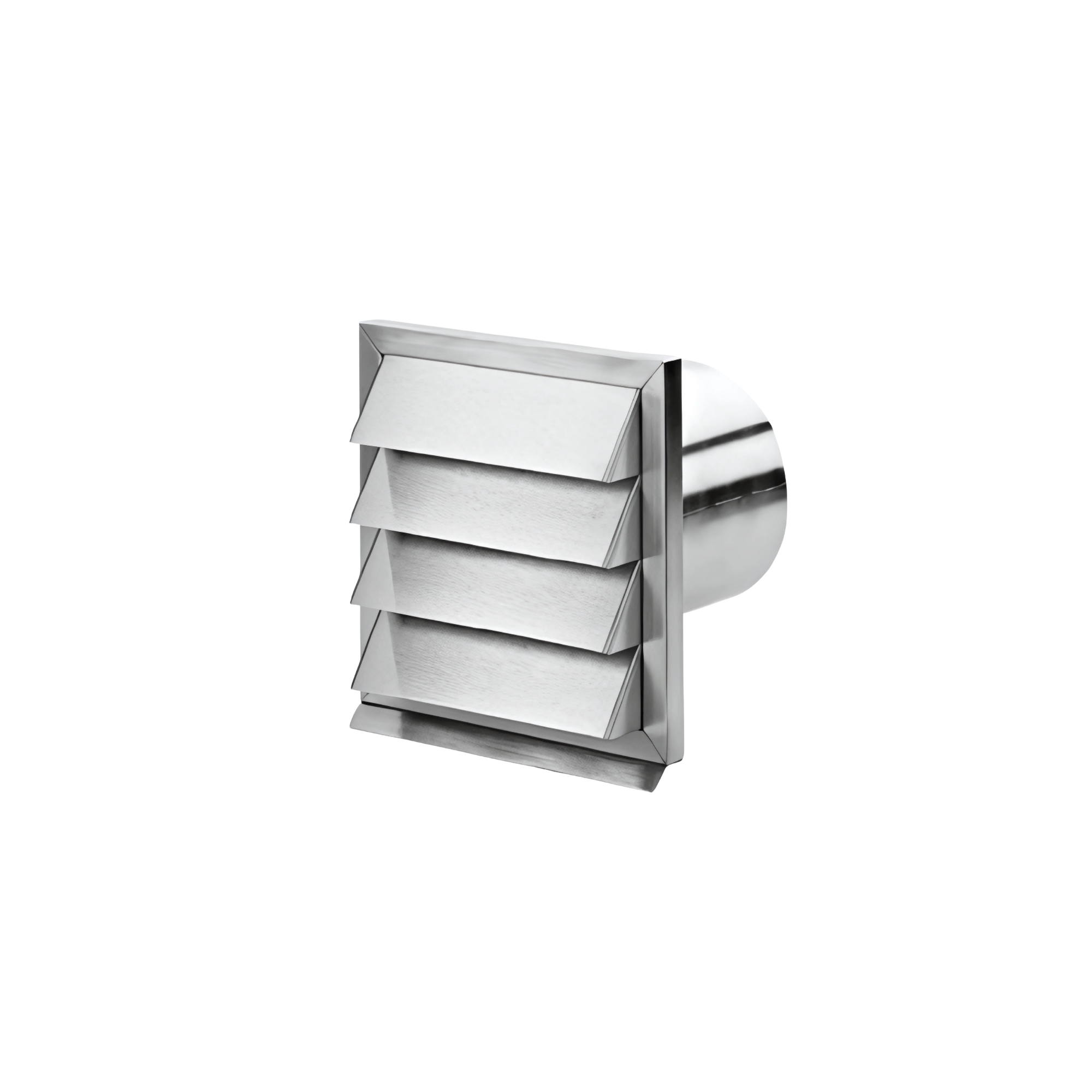

Naber Wall Vent Stainless 150mm Round

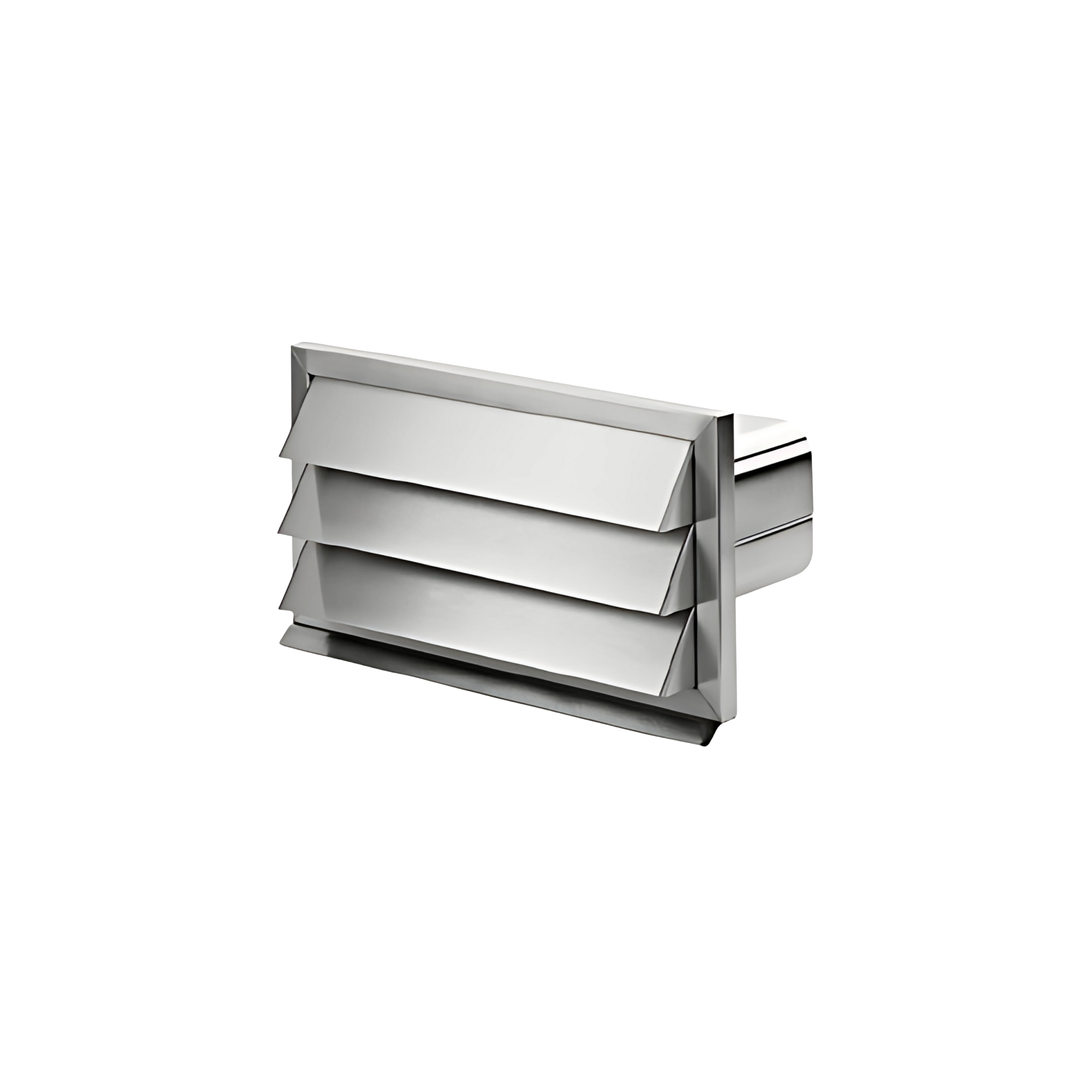

Naber Wall Vent Stainless Flat Channel Profile

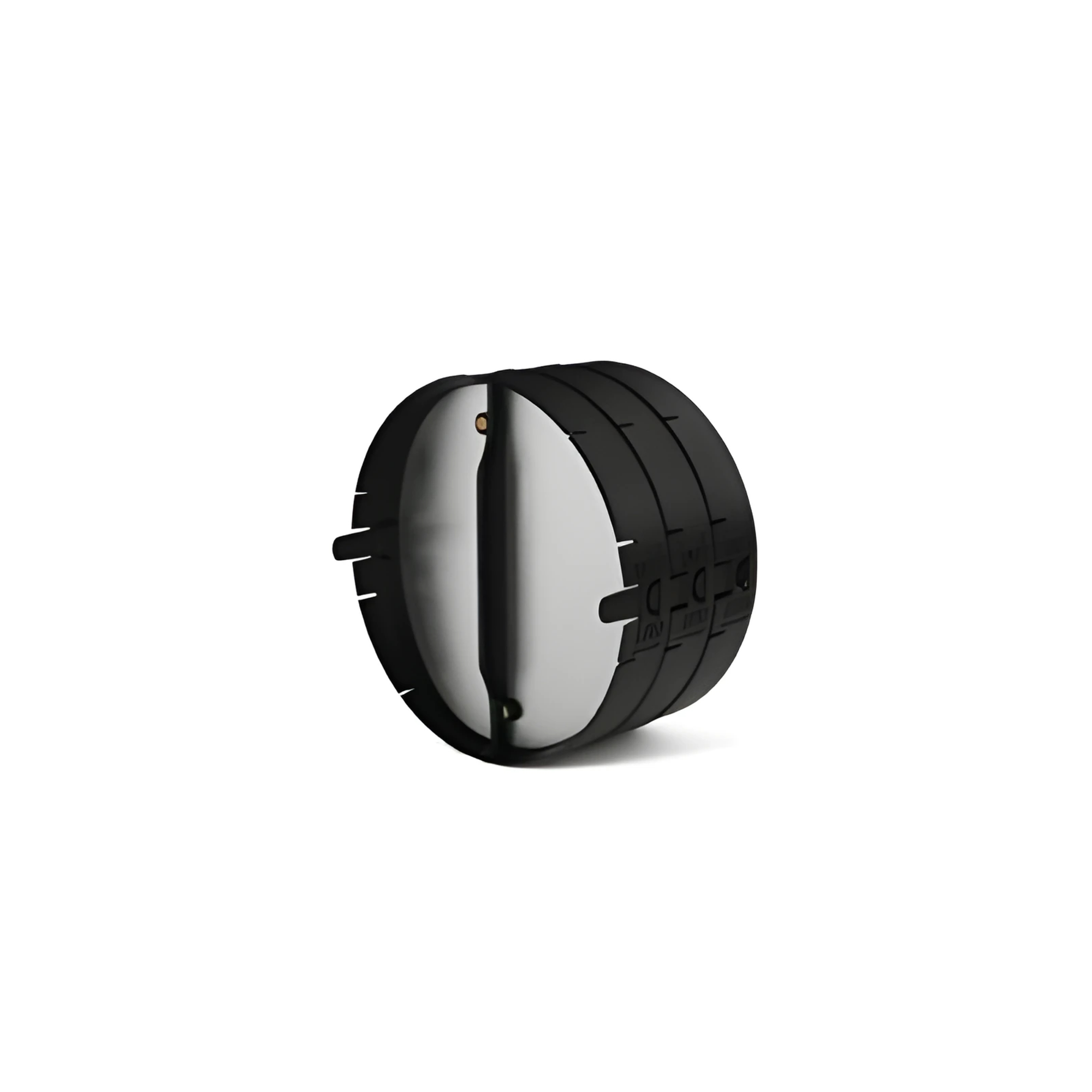

Passive Homes – Thermobox 150

When bends or offsets are unavoidable in the ducting run we will use 150/125mm “semi rigid” ducting. This is an aluminium smooth internal bore product which allows high unrestricted airflow around any radius of bend/offset. We can also offer a rectangle PVC boxed ducting for in wall frame or limited space installations. This option is also available in the equivalent of 150/125mm sizes with a variety of rectangle to round adaption fittings, along with horizontal and vertical offset options.

Some advantages of using the high spec ducting products mentioned above over the sub-standard flexible ducting used by some installers are:

  • Semi Rigid Ducting

    Ideal ducting to install with powerful onboard rangehoods, with ducting distances of 0-6m

  • Flexi Ducting – when installed with Onboard, Non-Silent Rangehoods

    If installed with an onboard model, only to be used on very short ducting routes 0-3m maximum & when the installation of semi rigid ducting is unachievable

  • Flexi Ducting – When installed with Offboard Silent Rangehoods

    If installed with an offboard model, plan for a 3-6m ducting route, the longer the ducting distance the quieter the rangehood will perform at kitchen level

  • High Spec Flexi Ducting

    Premium Flexi Ducting, to be installed as noted above with either onboard or offboard models, this ducting is flame proof, rodent proof & highly durable

  • Galvanised & Spiral Duct

    Ideal for extra-long onboard ducting routes, excellent airflow & highly durable

  • Flat Channel Ducting

    Ideal for installation in narrow spaces, in ceilings, toe kicks & in wall frames, comes with a variety of fittings

  • Naber Channel Ducting

    Premium Flat Channel Ducting, with a smooth internal bore & rounded corner edges for optimum airflow, perfect to install with downdraughts and again all those tight narrow spaces

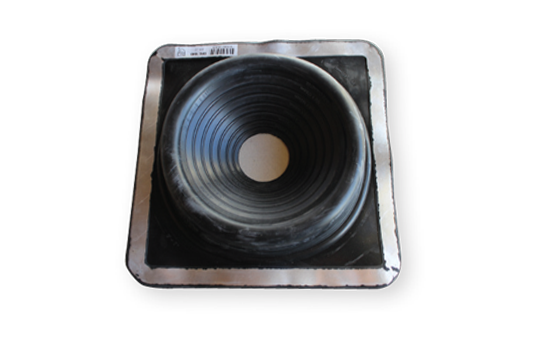

  • Roof Flashing Systems

    We have a variety of Roof Flashing Systems to suit your roof pitch & profile, please enquire
